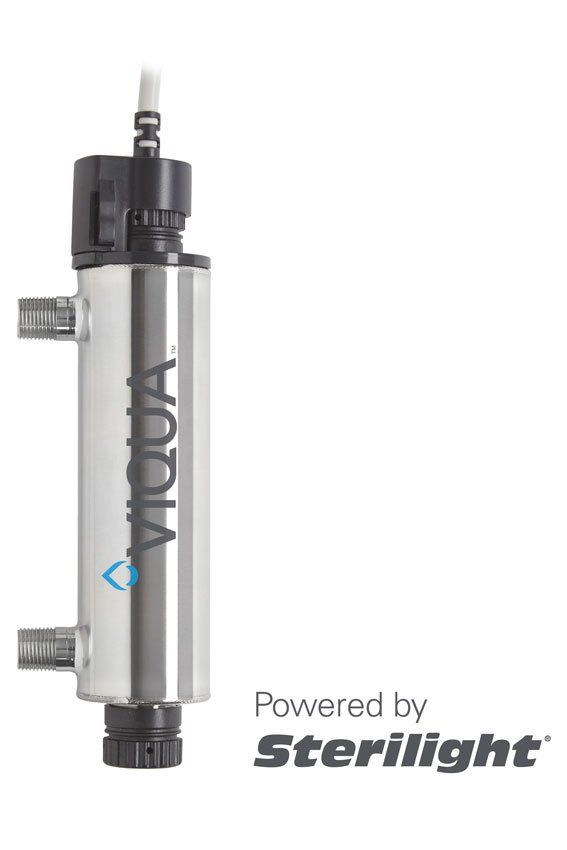

Viqua VT1 (120v)

Brand: Ampac USA
Product Code: VT1
Made in USA

The quality of drinking water can change with time and become contaminated with harmful bacteria. The VT1 system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application.

  • VT “Entry level” point-of-use UV system for recommended flow rates up to 1 GPM (4 lpm)
  • Small, durable, easy to install, and features an “on” indicator light

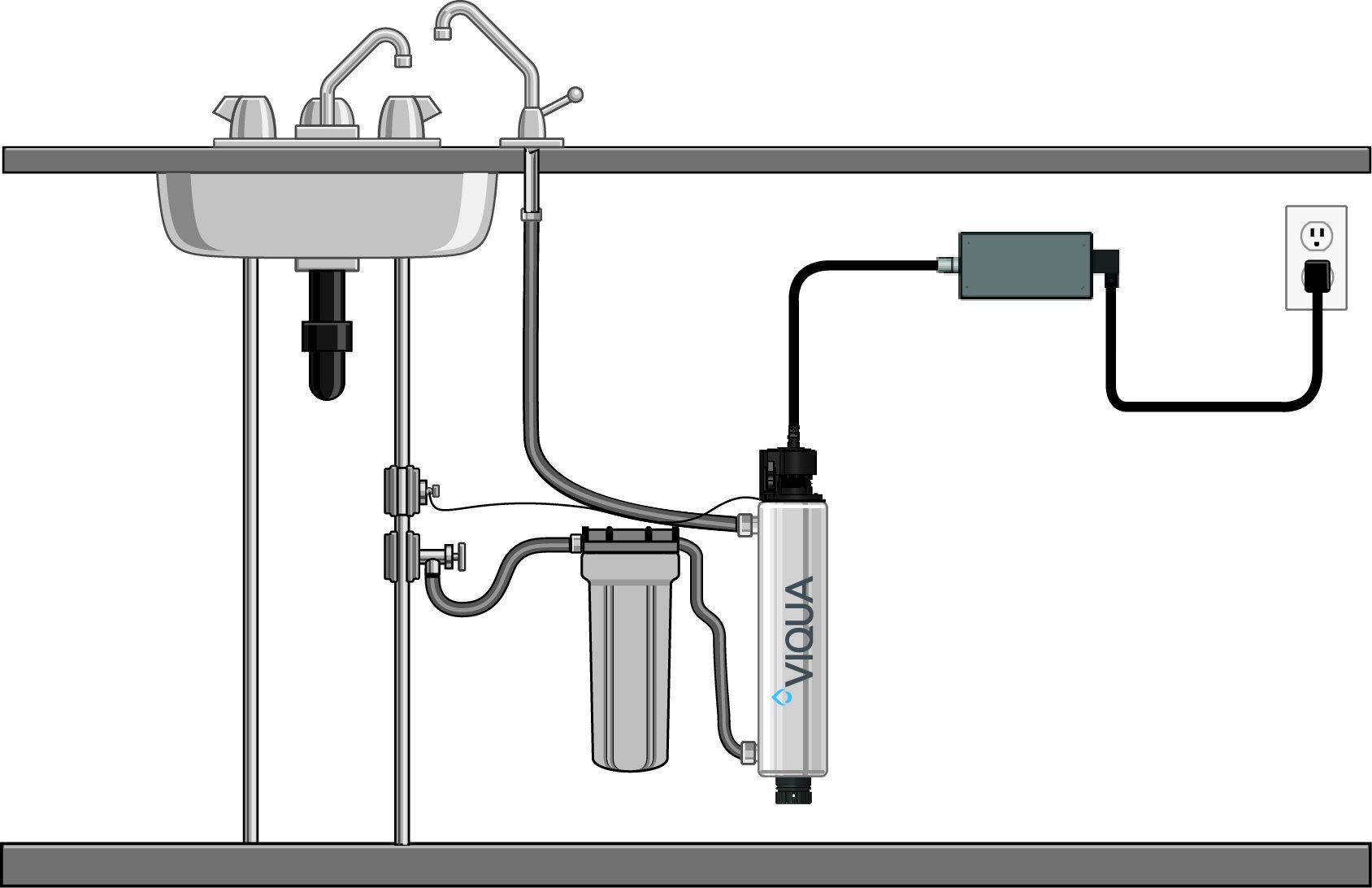

  • Perfect for a single faucet, water fountain or low-flow application

TheViqua VT1 Copper Series UV System Powered By Sterilight 1 GPM is specifically designed for point-of-use applications where microbiological control is required. The VT1 UV System controls bacteria, virus and protozoan cyst all in one complete design.

  • 304 Stainless Steel Reactors
  • Flow Rate: 1 gpm
  • Dimensions: 13.5" x 2.5" Diameter
  • Max Operating Pressure: 125 psi
  • Inlet/Outlet Port Size: 1/2" MNPT/ 3/8" FNPT
  • Volts: 100-130V/50-60Hz

Operating Conditions

Flow Rate (16mJ/cm2 Dose) 2 gpm
Flow Rate (30mJ/cm2 Dose) 1 gpm
Flow Rate (40mJ/cm2 Dose) 0.7 gpm
Operating Pressure Range 125 max psi


Inlet/Outlet 1/2" MPT, 3/8" FPT Combo
Chamber Length 12.5 "
Chamber Diameter 2.5 "


Voltage 120 V
Frequency 50-60 Hz
Power Consumption 13 W


Number of Lamps 1
Chamber Material 304 Stainless Steel Reactor
Other Features Visual Power On
