Commercial Turnkey Reverse Osmosis 3,000 GPD | 11.4m3/Day

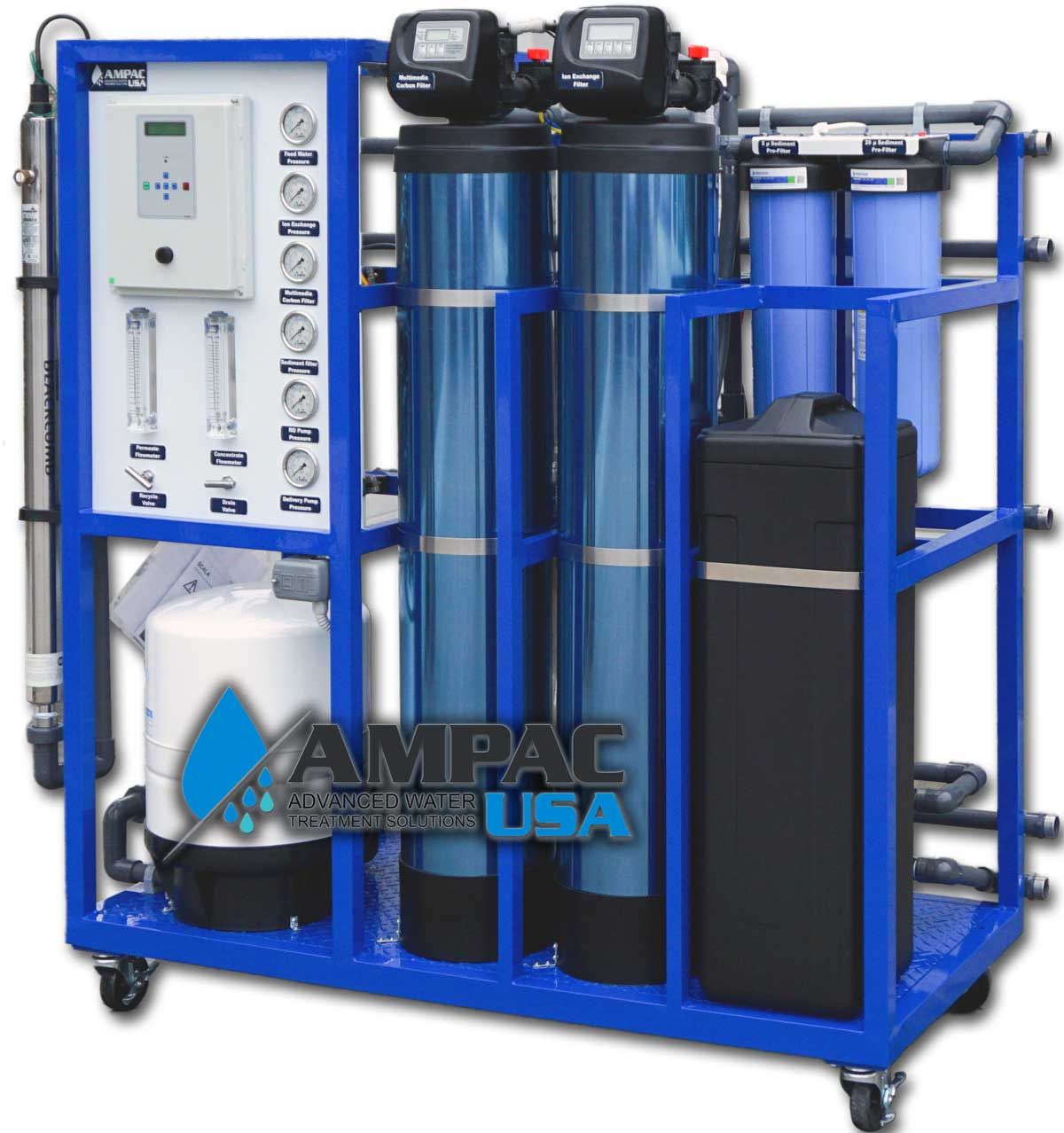

The AMPAC USA Fully Equipped LX Series Commercial Turnkey Reverse Osmosis 3,000 GPD | AP3000-LX is the result of 28 years of experience with the needs and requirements of commercial pure water consumers with brackish and well water. This includes family homes, restaurants, coffee stores, convenience stores, microbreweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistently high-quality water for their daily operations. The key factors in AP3000-LX are its reliability, serviceability, and consistent performance with minimum user intervention that are achieved in the solid design of the  AMPAC USA LX Series systems. Powder Coated Welded Aluminum is used to build our frames, Stainless Steel pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

---

Standard Features:

•      Spin Down Screen Filter with Manual Flush Valve
•      Ion Exchange Water Softener w/auto-backwash valve
•      Multimedia KDF-Catalytic Carbon-Poly Phosphate Pre-Filter w/auto-backwash valve
•      4” x 20” Big Blue Sediment Pre-Filter 20 Micron
•      4” x 20” Big Blue Sediment Pre-Filter 05 Micron
•      Horizontal Multi-Stage High-Pressure Jet Pump with Safeguards for Brackish Water Application
•      4” x 40” FRP Pressure Vessels
•      4” x 40” TFC Membrane Element
•      Smart-on-Demand Delivery (Distribution) Pump to Point of Use 2HP.
•      4” x 10” Big Blue Carbon Post-Filter 05 Micron
•      Ultra Violet Sterilizer
•      Powder-coated, Welded Aluminum Frame with Aluminum Diamond Plate.

---

Instrumentations:

•      Automatic Operating Programmable logic controller UL/CE Approved with:
  • Smart Relay
  • Delayed start-up of the high-pressure pump
  • Inlet Solenoid Valve
  • Low & High Feed Pressure Switch Controls
  • Supply & Delivery Pumps Controls
  • R/P Storage Tank Full Pump on/off
  • AutoFlush Cycle
  • Pre-Treat Lockout
  • TDS/Conductivity Monitor
  • Temperature Monitor
  • Hour Meter
•      Complete Panel for Easy Controls
•      4 Count Stainless steel liquid-filled pressure gauges
•      Permeate and concentrate flow meters
•      Inlet Solenoid Valve with Bypass
•      Low pressure cut off Pressure Switch
•      Stainless Steel System Pressure Control
•      Stainless Steel Recycle Pressure Valve
•      On/Off Main Power Switch.

---

Optional Features:

•      Anti-Scalant Dosing System (Hard Water Present Conditions)
•      Chlorine Dosing System (Iron Manganese Present Conditions)
•      Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
•      Ozone Generator Disinfection System Installed on Circulation Loop.
•      Silica quartz Pre-Filter w/auto-backwash valve

---

System Features:

Frame	Powder Coated One-Piece Aluminum w/Diamond Plate
Membranes	(2) ea TFC 4" x 40"
Vessels	4" x 40" Stainless Steel
Pump	Goulds Multi-Stage Jet Pump with Safeguards (SS option)
Gauges - Glycerin Filled	Pre-Filter PSI, Post-Filter PSI, Booster Pump PSI
Valves	System Pressure, Recycle Pressure
Switches	Low PSI Cutout, Tank Full Cutout
Electrical	110 or 220 V, 50 or 60 Hz, single or Three phase
Motor	1 Hp - 1725 rpm
Connections	1" Quick Tubing Connectors
Capacity per US Gallon	2.08 GPM - 3,000 GPD
Capacity per Liters	7.90 LPM - 11,350 LPD
Operating Pressure	170 - 225 psi
Typical Recovery	33% - 50%
Typical Rejection	99%
Max Feed  TDS - Hardness	2500 ppm - 15 grains For Municipal Water Design
Max Feed  TDS - Hardness	10,000 ppm - 25 grains For Brackish Water Design
Max Feed Temp	113 degrees F
Feed pH Range	2-11
Max Chlorine	less than 0.1 ppm
Dimensions	52" wide x 24" deep x 65" ht.
Weight	320 Lbs. / 145 Kgs.

---

Make of System: Fully Automated Turnkey Water Purification System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated Welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.

Make of System: AP3000-LX

Origin:  Made in the USA

Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis and can be Adjustable up to 120 Minutes at any given time.

Delivery Terms:  System is ready to be created and shipped, on average 2-3 Weeks from the day of receipt of purchase order.

System production is based on the following conditions: 10,000ppm NaCI feed water, 77°f/ 25°c Operating temperature and 3.0-11.0pH Range.  Actual feed water analysis may require special consideration affecting final design and pricing.



*Prices are subject to change without notice.

At 3,000 GPD and 2.08 GPM, the AP3000-LX crosses into territory where water quality directly affects production throughput — commercial laundries, greenhouse operations, and mid-size food processors all depend on consistent low-TDS feed water to protect equipment and maintain process specifications. Four FILMTEC TW30-4040 membranes at 75% recovery mean less than 28 gallons per hour goes to drain, which matters on water-rate structures that charge for effluent volume. The unit requires 208-240V service, standard in any commercial equipment room.

Specifications

Parameter	Value
System Capacity	3,000 GPD / 11,356 LPD
Flow Rate	~2.08 GPM
TDS Rejection	Up to 99%
Membranes	4x 4"x40" FILMTEC TW30-4040
Operating Pressure	150-250 PSI
Power	208-240V / 60Hz, 1 HP pump
Recovery Rate	75%
Feed Connection	1"
Product Connection	3/4"
Drain Connection	3/4"
Warranty	2-year parts warranty

Typical Applications

• Commercial laundry operations (linen services, uniform cleaning — extends fabric life and reduces detergent consumption)
• Medium food processing (sauces, beverages, dairy — ingredient water standardization)
• Greenhouse and hydroponic irrigation systems (nutrient solution makeup, EC control)
• Car wash tunnel systems (spot-free final rinse, multi-lane)
• Pharmaceutical compounding facilities (USP purified water pre-treatment)
• Commercial bakery and confectionery water supply

Pre-Treatment Requirements

The 1" feed connection on the AP3000-LX requires a pre-filter housing rated for at least 3 GPM with 5-micron cartridges. On municipal supplies, a carbon block stage is mandatory — chlorine contact with TW30 membranes causes irreversible oxidative damage within hours of exposure. For well water or agricultural-area supplies with iron above 0.1 mg/L, add an iron removal stage before the carbon filter. Hardness above 7 gpg demands softener pre-treatment or continuous antiscalant dosing; at this flow rate, scaling is rapid and membrane replacement costs are significant.

Why AMPAC

The AP3000-LX is designed and assembled at AMPAC's Pomona, CA facility using FILMTEC TW30-4040 membranes — the industry benchmark for 4"x40" commercial elements, with published performance data traceable to Dow Water and Process Solutions testing standards. The 1 HP pump is sized for the 150-250 PSI operating envelope without running at thermal limits, which affects bearing life in 24/7 operations. Factory pressure testing on every unit before shipment means you are not commissioning blind. Two-year parts warranty, domestic parts inventory, US-based technical support.
