Commercial Turnkey Reverse Osmosis 4,400 GPD | 16.7m3/Day

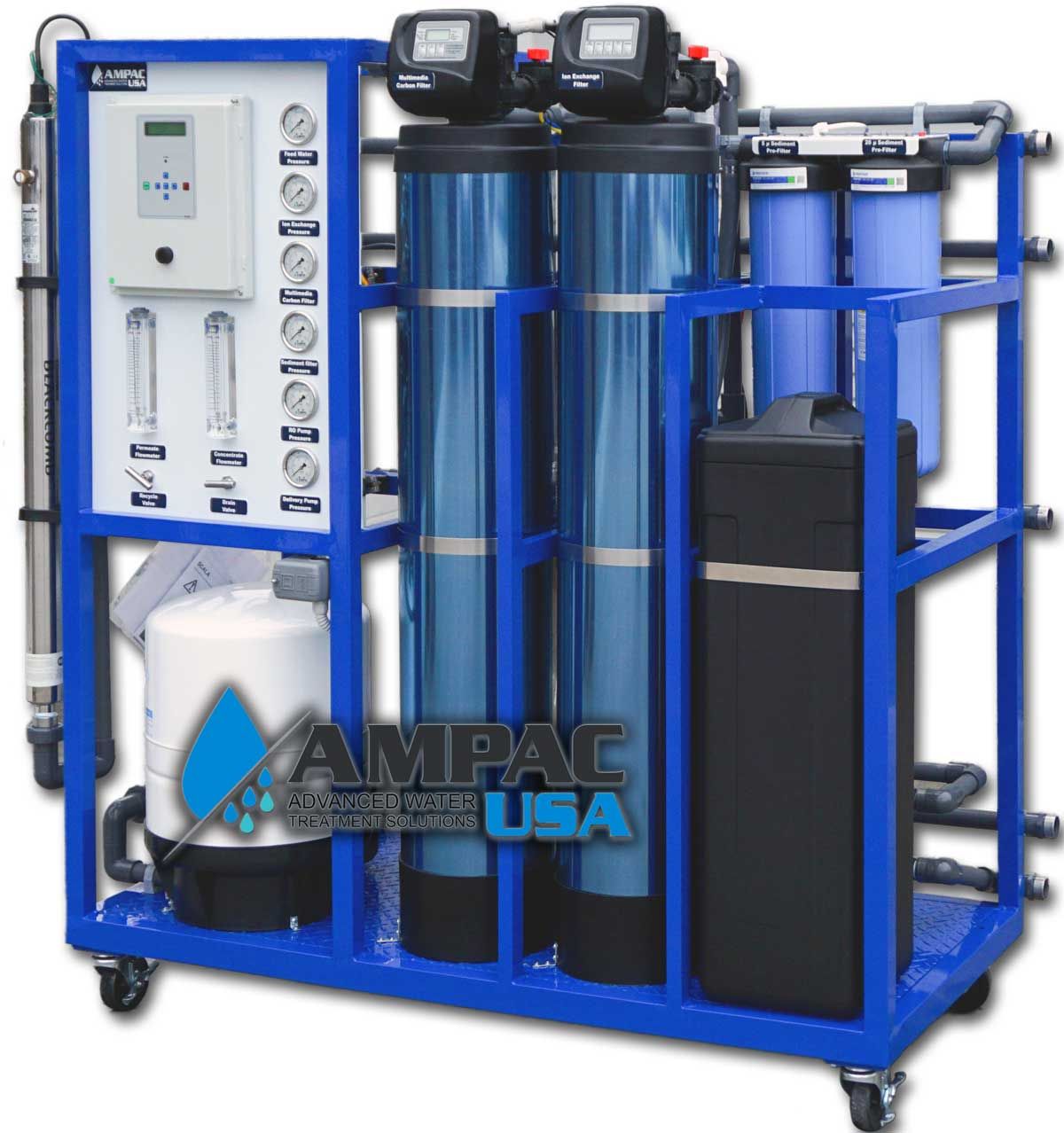

The AMPAC USA Fully Equipped LX Series Commercial Turnkey Brackish Reverse Osmosis 4,400 GPD | AP4400-LX is the result of 28 years of experience with the needs and requirements of commercial pure water consumers with brackish and well water. This includes family homes, restaurants, coffee stores, convenience stores, microbreweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistently high-quality water for their daily operations. The key factors are reliability, serviceability, and consistent performance with minimum user intervention that are achieved in the solid design of the AMPAC USA LX Series systems. Powder Coated Welded Aluminum is used to build our frames, Stainless Steel pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

---

Standard Features:

• Spin Down Screen Filter with Manual Flush Valve
• Ion Exchange Water Softener w/auto-backwash valve
• Multimedia KDF-Catalytic Carbon-Poly Phosphate Pre-Filter w/auto-backwash valve
• 4” x 20” Big Blue Sediment Pre-Filter 20 Micron
• 4” x 20” Big Blue Sediment Pre-Filter 05 Micron
• Horizontal Multi-Stage High-Pressure Jet Pump with Safeguards for Brackish Water Application
• 4” x 40” FRP Pressure Vessels
• 4” x 40” TFC Membrane Element
• Smart-on-Demand Delivery (Distribution) Pump to Point of Use 1HP.
• 4” x 10” Big Blue Carbon Post-Filter 05 Micron
• Ultra Violet Sterilizer
• Powder-coated, Welded Aluminum frame with Aluminum Diamond Plate.

---

Instrumentations:

•      Automatic Operating Programmable logic controller UL/CE Approved with:
  • Smart Relay
  • Delayed start-up of the high-pressure pump
  • Inlet Solenoid Valve
  • Low & High Feed Pressure Switch Controls
  • Supply & Delivery Pumps Controls
  • R/P Storage Tank Full Pump on/off
  • AutoFlush Cycle
  • Pre-Treat Lockout
  • TDS/Conductivity Monitor
  • Temperature Monitor
  • Hour Meter
• Complete Panel for Easy Controls
• 4 Count Stainless steel liquid-filled pressure gauges
• Permeate and concentrate flow meters
• Inlet Solenoid Valve with Bypass
• Low pressure cut off Pressure Switch
• Stainless Steel System Pressure Control
• Stainless Steel Recycle Pressure Valve
• On/Off Main Power Switch.

---

Optional Features:

• Anti-Scalant Dosing System (Hard Water Present Conditions)
• Chlorine Dosing System (Iron Manganese Present Conditions)
• Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
• Ozone Generator Disinfection System Installed on Circulation Loop.
• Silica quartz Pre-Filter w/auto-backwash valve.

---

System Features:

Frame	Powder Coated One-Piece Aluminum w/Diamond Plate
Membranes	(2) ea TFC 4" x 40"
Vessels	4" x 40" Stainless Steel or FRP
Pump	Goulds Multi-Stage Jet Pump with Safeguards (SS option)
Gauges - Glycerin Filled	Pre-Filter PSI, Post-Filter PSI, Booster Pump PSI
Valves	System Pressure, Recycle Pressure
Switches	Low PSI Cutout, Tank Full Cutout
Electrical	110 or 220 V, 50 or 60 Hz, single or Three phase
Motor	1½ Hp - 1725 rpm
Connections	1" Quick Tubing Connectors
Capacity per US Gallon	3.06 GPM - 4,400 GPD
Capacity per Liters	11.6 LPM - 16,650 LPD
Operating Pressure	170 - 225 psi
Typical Recovery	33% - 50%
Typical Rejection	99%
Max Feed  TDS - Hardness	2500 ppm - 15 grains For Municipal Water Design
Max Feed  TDS - Hardness	10,000 ppm - 25 grains For Brackish Water Design
Max Feed Temp	113 degrees F
Feed pH Range	2-11
Max Chlorine	less than 0.1 ppm
Dimensions	48" wide x 30" deep x 62" height.
Weight	160 Lbs. / 73 Kgs.

---

Make of System: Fully automated Turnkey Water Purification System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.

Make of System: AP4400-LX

Origin:  Made in the USA

Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis and can be Adjustable up to 120 Minutes at any given time.

Delivery Terms:  System is ready to be created and shipped, on average 2-3 Weeks from the day of receipt of purchase order.

System production is based on the following conditions: 10,000ppm NaCI feed water, 77°f/ 25°c Operating temperature and 3.0-11.0pH Range.  Actual feed water analysis may require special consideration affecting final design and pricing.



*Prices are subject to change without notice.

The AP4400-LX at 4,400 GPD and 3.06 GPM is sized for high-demand commercial environments where water supply interruptions translate directly to lost revenue — large-format restaurants, hotel water service, light industrial process lines, and small-batch bottling operations. Six FILMTEC TW30-4040 membranes operating at 75% recovery deliver over 3 GPM of product water continuously, with reject volume low enough to manage on standard commercial drain sizing. The 1.5 HP pump on 208-240V handles the pressure requirements without the service issues common to undersized motors running at continuous duty.

Specifications

Parameter	Value
System Capacity	4,400 GPD / 16,652 LPD
Flow Rate	~3.06 GPM
TDS Rejection	Up to 99%
Membranes	6x 4"x40" FILMTEC TW30-4040
Operating Pressure	150-250 PSI
Power	208-240V / 60Hz, 1.5 HP pump
Recovery Rate	75%
Feed Connection	1"
Product Connection	3/4"
Drain Connection	1"
Warranty	2-year parts warranty

Typical Applications

• Large full-service restaurants (200+ covers/day, full kitchen and bar RO supply)
• Hotel water service (guest floor ice, kitchen, and coffee station combined feeds)
• Light industrial process water (parts washing, cooling tower makeup, boiler feed pre-treatment)
• Small-batch bottling and canning operations
• Commercial car wash tunnel (spot-free rinse with buffer tank)
• Cannabis cultivation facilities (irrigation water and nutrient solution makeup)

Pre-Treatment Requirements

At 3+ GPM, pre-filter sizing becomes critical — undersized sediment housings create pressure drop that starves the high-pressure pump and triggers low-pressure cutoffs. Size pre-filter housings for at least 5 GPM capacity with 5-micron cartridges and plan for monthly replacement in high-turbidity supply conditions. Carbon pre-treatment is mandatory for chlorinated feeds. If feed TDS exceeds 2,000 mg/L — common in agricultural areas or coastal groundwater — contact AMPAC engineering before ordering, as operating pressure requirements may push outside the standard 150-250 PSI range.

Why AMPAC

Six FILMTEC TW30-4040 elements in the AP4400-LX are not simply more of the same — element staging and concentrate management at this array size require engineering attention to cross-flow balance, which AMPAC has refined over 30+ years of commercial system builds in Pomona, CA. The 1.5 HP motor is conservatively rated for continuous duty at the design operating point. Factory testing covers the full pressure and flow envelope before the unit ships. The 2-year parts warranty applies to all factory-installed components, and replacement parts ship from domestic inventory.
