APRO-DI15
APRO-DI15 High Purity Water Treatment & Lab Pure Water System
Ampac USA's Pre-Engineered Laboratory Water Systems are designed to serve as the centralized, purified water source for a variety of academic, medical, and other research laboratory facilities.
- Model
- APRO-DI15
- Flow Rate
- 1,500 GPD
- Shipping safetyReceive your items 100% in good condition
- Returns policy30 days from invoice with an RGA number. Custom-built systems are non-returnable.
About the APRO-DI15
Pricing for the APRO-DI15 is quoted on request. Send your flow rate and a feed-water analysis, or call and talk it through with an engineer.

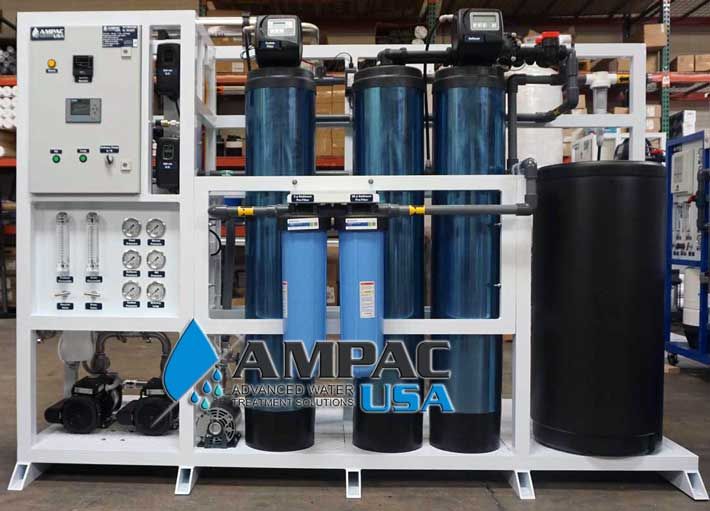

High Purity Lab Water Skid APRO/DI1500
Ampac USA's Pre-Engineered Laboratory Water Systems are designed to serve as the centralized, purified water source for a variety of academic, medical, and other research laboratory facilities.
Designed to meet or exceed the Type II reagent- grade water platform set forth by CAP/NCCLS and ASTM standards. Standard systems are furnished with all the Pre-treatment equipment, fully assembled, and factory-tested on an aluminum skid package to minimize field installation and start-up costs. The standard system includes the following equipment:
• Twin Alternating Ion Exchange Water Softening Pre-Treatment Modules
• Activated Carbon Pre-Treatment Modules
• Sediment Pre-Filtration
• Reverse Osmosis (RO) Process
• RO water storage tank
• Stainless steel distribution pumps
• DI exchange polishers (portable exchange type)
• Ultraviolet (UV) sterilizer
• Final sub-micron filter (0.2 micron)
• Central control panel with purity monitoring.
Operating Parameters:
• Operating RO Pressure: 200-250 PSIG
• Nominal RO Recovery: 50–65%
• Nominal TDS Rejection: 98–99% (RO unit)
• DI Water Quality: 16-18 Mega Ohms
• Operating Temperature: 45–85° F
• Design Temperature: 50° F
• Minimum Inlet Pressure: 50 PSIG
• Electrical Requirement: 240 VAC, 1 or 3-phase, 50 or 60 Hz.
• DI Loop Outlet Pressure: 75 PSIG
Materials of Construction:
• Skid Frame: Fully Welded Epoxy-coated Aluminum
• Membrane Elements: Thin-film Composite (TFC) • Membrane Housings: FRP
• Low-Pressure Piping: Sch 80 PVC
• High RO pressure piping: 316SS
• RO/DI Water Storage Tank: Polyethylene
• DI Water Loop Piping: Fusion-welded Polypropylene Pump and Motor
• Pump: 316SS vertical multistage centrifugal
• Automatic backwashing carbon filter (timer)
• Twin alternating water softener (metered)
• Single-pass Reverse Osmosis unit
• Conical bottom closed top storage tank
• Storage tank level controller and mounting stand
• Duplex RO/DI distribution pumps (2 x 100%)
• Primary/Polisher mixed bed DI polishers
• UV Sterilizer unit with intensity monitor (254 nm)
• NEMA-4 Electrical enclosures
• Pre-wired motor starters with fused disconnect switch
• DI Water outlet flowmeter
• DI Water outlet resistivity monitor
Optional Equipment:
• Programmable Logic Controller (PLC) systems
• Remote Communications with Touchscreen HMI
• Variable Frequency Drives (VFD’s)
• Multi-media filter pre-treatment
• Type III Lab Systems
The APRO-DI15 is AMPAC USA's advanced high purity water treatment system engineered to produce ultrapure water for demanding laboratory applications. This lab pure water system delivers type 1 ultrapure water (Type I water, 18.2 MΩ·cm) and type ii water through a multi-stage process: RO pre-treatment, ion exchange with exchange resin, and UV polishing. Meets ASTM type I water specifications for cell culture, HPLC, and critical analytical applications.
The APRO-DI15 is part of AMPAC USA's complete range of ultrapure water systems and lab water purification systems. Our high purity water system product line covers flow rates from bench-top to high-volume production. Typical feed water from tap water is pre-treated through the RO stage (reducing TDS by up to 99%) then polished by the DI stage to achieve resistivity of ≤0.1 cfu ml (low bioburden). Contact AMPAC USA for specifications and ordering information for the APRO-DI15 laboratory water purification systems.
Frequently Asked Questions
What water quality does the APRO DI-15 produce?
The APRO DI-15 delivers Type I ultrapure water at 18.2 MΩ·cm along with Type II water, meeting ASTM Type I specifications for applications such as cell culture, HPLC, and critical analytical work.
What treatment process does the APRO DI-15 use?
It combines reverse osmosis pre-treatment, ion exchange with exchange resin, and UV polishing in a multi-stage process, preceded by sediment pre-filtration and activated carbon and water softening modules.
What is the RO stage's contaminant rejection rate?
The reverse osmosis stage reduces total dissolved solids by up to 99%, with a nominal TDS rejection of 98-99% and nominal recovery of 50-65%, before the DI stage polishes the water further.
What electrical requirements does the APRO DI-15 have?
The system requires 240 VAC power, available in 1-phase or 3-phase configuration, at 50 or 60 Hz.
Is the APRO DI-15 suitable for laboratory applications beyond basic purification?
Yes. It's designed as a centralized purified water source for academic, medical, and research laboratory facilities, with a UV sterilizer and final 0.2-micron sub-micron filter to support demanding analytical applications.
