Recovery rate is one of the most consequential design parameters in an RO system — and one of the least understood. Set it too low and you waste water. Set it too high and you scale membranes, spike concentrate TDS past disposal limits, and shorten equipment life. Getting it right requires understanding what recovery rate actually controls and how to balance competing constraints.
What Recovery Rate Means
Recovery rate (also called system recovery or conversion rate) is the percentage of feed water that becomes permeate (product water). The remainder becomes concentrate (reject water) that exits the system to drain.
Formula:
Recovery (%) = (Permeate Flow / Feed Flow) × 100
Examples at different recovery rates for a system producing 1,000 GPD permeate:
| Recovery Rate | Permeate (GPD) | Feed Required (GPD) | Concentrate to Drain (GPD) |
|---|---|---|---|
| 50% | 1,000 | 2,000 | 1,000 |
| 65% | 1,000 | 1,538 | 538 |
| 75% | 1,000 | 1,333 | 333 |
| 85% | 1,000 | 1,176 | 176 |
Why Recovery Rate Can’t Just Be Maximized
Higher recovery means less water wasted to drain. That sounds unambiguously good — but recovery rate is directly linked to concentrate TDS, and concentrate TDS is what drives scaling.
As recovery increases, rejected contaminants accumulate in a shrinking volume of concentrate. The relationship between recovery rate and concentrate TDS (called the concentration factor or CF) is:
Concentration Factor = 1 / (1 − Recovery)
| Recovery Rate | Concentration Factor | Example: 500 ppm Feed → Concentrate TDS |
|---|---|---|
| 50% | 2× | ~1,000 ppm |
| 75% | 4× | ~2,000 ppm |
| 85% | 6.7× | ~3,350 ppm |
| 90% | 10× | ~5,000 ppm |
As concentrate TDS rises, sparingly soluble salts — primarily calcium carbonate, calcium sulfate, barium sulfate, and silica — approach and exceed their solubility limits. When they do, they precipitate on the membrane surface as scale. Scale is mechanically difficult to remove, reduces flow, and eventually causes irreversible membrane damage.
Recovery rate is therefore constrained by the scaling potential of the specific ions in your feed water, not by an arbitrary preference for water conservation.
What Limits Recovery Rate in Practice
Calcium Carbonate (CaCO₃) Scaling
The most common scaling compound in brackish water RO. The Langelier Saturation Index (LSI) predicts whether concentrate will be scaling or non-scaling. At typical commercial recovery rates (65–80%), hard water without softener pre-treatment or antiscalant dosing will scale membranes within weeks to months. Pre-treatment fix: water softener upstream (removes Ca²⁺ and Mg²⁺) or antiscalant chemical dosing system.
Silica (SiO₂) Scaling
Silica solubility is approximately 120 ppm at 77°F and pH 7. At high recovery, concentrate silica can exceed this limit even when feed silica appears moderate. Unlike carbonate scaling, silica scale is not removed by acid cleaning — it requires specialized silica-dissolving chemicals. Limit: keep concentrate silica below 80–100% of solubility limit. For high-silica feed water, recovery rate may need to be limited to 50–60% or antiscalant with silica dispersant added.
Concentrate TDS Disposal Limits
In some municipalities, sewer discharge of RO concentrate above a certain TDS threshold requires a permit. Industrial facilities may face discharge limits on specific ions (chlorides, sulfates, heavy metals concentrated in the reject stream). These constraints cap the recovery rate from the disposal side, not the scaling side.
Membrane Hydraulic Limits
Each element in a pressure vessel array sees a progressively higher feed TDS (as permeate is extracted, the remaining feed becomes more concentrated). The last element in a vessel always operates under the highest osmotic pressure and lowest net driving pressure. As recovery increases, this imbalance worsens. Manufacturer guidelines set maximum recovery per element (typically 15–20% per element) and maximum system recovery for a given array configuration.
Typical Recovery Rates by Application
| Application / Feed Water | Typical System Recovery | Notes |
|---|---|---|
| Municipal water, light commercial (restaurant, car wash) | 65–75% | Standard operating range with antiscalant or softener pre-treatment |
| Municipal water, well-maintained system with softener | 75–80% | Softener removes Ca/Mg, reducing scaling risk at higher recovery |
| Hard well water (above 15 GPG), no softener | 50–60% | Higher recovery will cause rapid scaling without pre-treatment |
| High-silica well water (>25 ppm SiO₂) | 50–65% | Silica solubility constraint limits recovery |
| Surface water / industrial with antiscalant | 70–80% | Antiscalant program allows recovery above levels achievable without treatment |
| Seawater desalination | 35–50% | High osmotic pressure limits achievable recovery; energy recovery devices required above 40% |
| Wastewater reclaim / zero liquid discharge | 85–95% | Requires full antiscalant program, pH adjustment, and often a brine concentrator for final stage |
How to Increase Recovery Without Scaling
Three main levers:
- Antiscalant chemical dosing: Threshold inhibitor chemicals (phosphonates, polyacrylates, carboxylates) are injected into the feed stream upstream of the RO. They interfere with crystal nucleation and growth of scaling compounds, allowing concentrate TDS to exceed the theoretical solubility limit before precipitation occurs. A properly designed antiscalant program can increase achievable recovery by 10–20 percentage points vs. untreated operation. Requires a dosing pump, chemical tank, and monthly chemical cost of $50–300 depending on system size.
- Softener pre-treatment: Removing calcium and magnesium before the RO eliminates the primary carbonate scaling risk. Enables higher recovery on hard water sources without antiscalant for the carbonate species — though silica and sulfate limits still apply.
- pH adjustment (acid dosing): Lowering feed water pH to 6.0–6.5 converts bicarbonate (HCO₃⁻) to CO₂ and converts calcium carbonate scaling potential to non-scaling form. Used in high-hardness, high-alkalinity applications where softening isn’t practical. Requires pH monitoring, acid metering pump, and acid-resistant wetted components.
Monitoring System Recovery

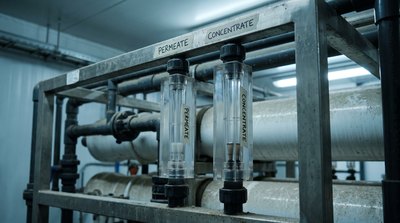

Recovery rate should be measured and logged regularly as part of a commercial RO maintenance program. The measurement requires flow meters on both the permeate and concentrate lines (feed flow = permeate + concentrate). If either flow rate changes while the other holds steady, recovery has shifted — investigate for:
- Increasing recovery (concentrate flow dropping): potential concentrate valve fouling or scaling in concentrate lines
- Decreasing recovery (permeate flow dropping): membrane fouling, pre-filter pressure drop increase, or pump wear
Recovery rate changes are an early signal. Systems that trend recovery over time alongside normalized permeate flow and normalized salt rejection catch fouling problems before they become membrane-damage problems. See the Commercial RO Maintenance Guide for a complete performance trending protocol.
Recovery Rate vs. Rejection Rate: Not the Same Thing
These two terms are often confused. Recovery rate describes how much feed water becomes product water (a system-level hydraulic parameter). Rejection rate describes how effectively the membrane removes contaminants from the water that passes through it (a membrane-level performance parameter). They’re independent: you can have high recovery with low rejection (fouled membrane passing more contaminants) or low recovery with high rejection (clean membrane, conservative operating point). Both matter; neither substitutes for the other. See RO Rejection Rate Explained for the full distinction.
Designing an RO system for your water quality? Recovery rate should be specified based on a water analysis, not assumed. Contact AMPAC USA with your feed water test data — we’ll run the scaling calculations and specify the right recovery rate, pre-treatment, and antiscalant program for your application.
